Pre-Amplifier Series A

Features

  • Low Noise
  • Adjustable gain and band-width
  • Compact size
  • Single and multi-channel configuration

Specifications

Electrical
Band-width (nominal) 20 kHz
Gain (minimum) 20 db
Gain (maximum) 87 db
Gain Control Adjustable
Input impedance 100 M ohms
Output impedance 100 ohms
DC power requirements ±15 volts/ 8 mA
Noise (nominal) 65 nV/Hz1/2
Mechanical
Length 2 3/16 in.
Width 1 3/8 in
Height 1 3/8 in.
Input connector BNC
Output connector BNC
Power connector 3 pin

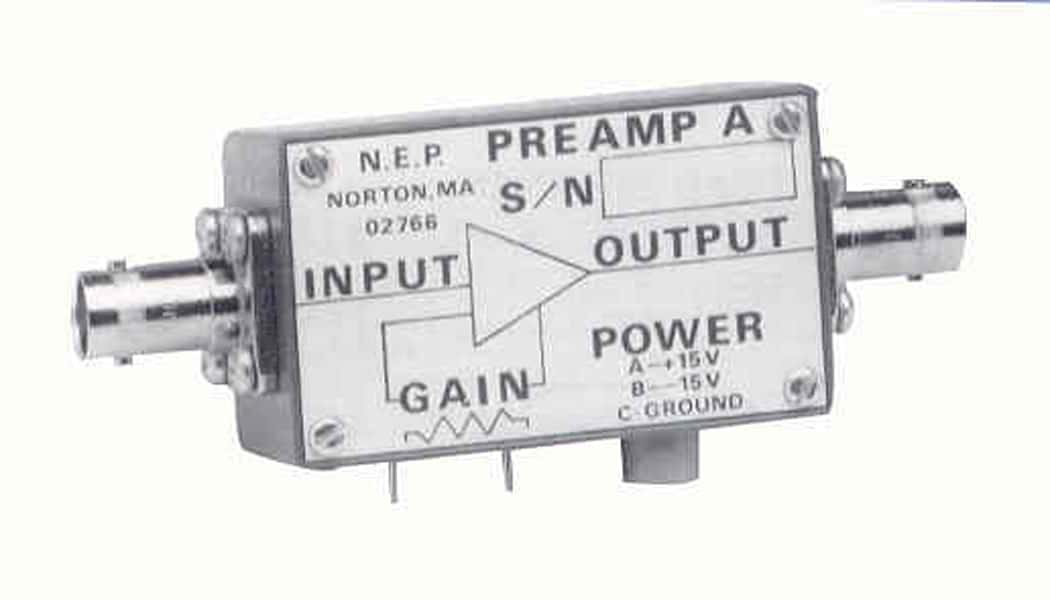

PreAmpA
